Featured products

At analytica 2026, we present a selection of innovative solutions designed to meet the evolving demands of analytical and life science applications. On this page, you’ll find some key products we are showcasing at the exhibition—from advanced detection technologies to reliable components that support precise, efficient measurements. Explore how our solutions can help drive performance, accuracy, and innovation in your applications.

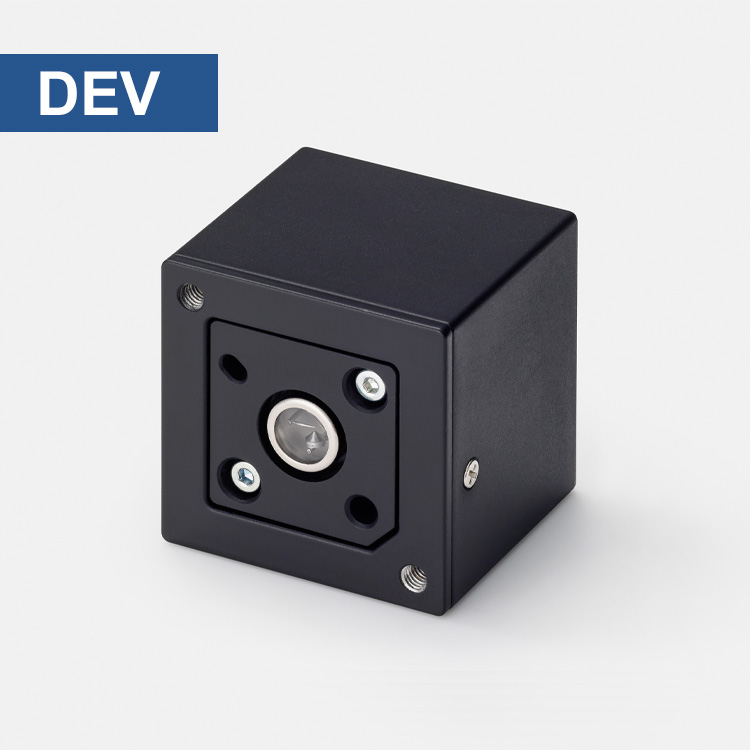

E3-X compact xenon flash lamp module L17513

The newest entry to our xenon flash lamp lineup, the E3-X has the smallest form factor of the series. It features low power consumption and is fabricated free of environmentally hazardous materials such as Halides making it an “eco-friendly” light source. The E3-X offers broadband output from UV to mid-IR at a reasonable cost, in a single light source, eliminating the need for multiple LEDs. User serviceable design is the first of its kind, allowing users to replace the bulb component at or before end of life.

InGaAs linear image sensor G17225 series

Hamamatsu's new InGaAs linear image sensor built for high-performance SWIR detection across diverse applications. Its CMOS architecture ensures efficient signal processing. Each pixel in the InGaAs photodiode array is paired with a CMOS charge amplifier, enabling charge integration readout for excellent sensitivity and stable operation over a wide spectral range. Users can easily optimize performance by adjusting external voltage, selecting from four conversion efficiency (CE) settings to meet specific application needs.

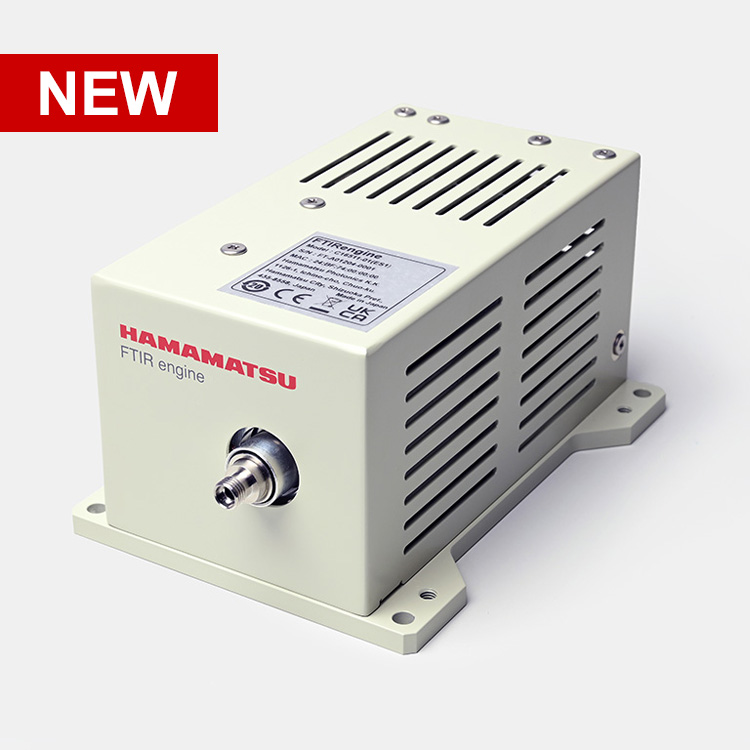

FTIR engine C16511-01

Utilizing the same powerful interferometer technology of the previous generation, this version of Hamamatsu’s FT-NIR engine is optimized for rapid measurements. Ideal for in-line applications of NIR spectroscopy such as process analytical technology (PAT) and food analysis.

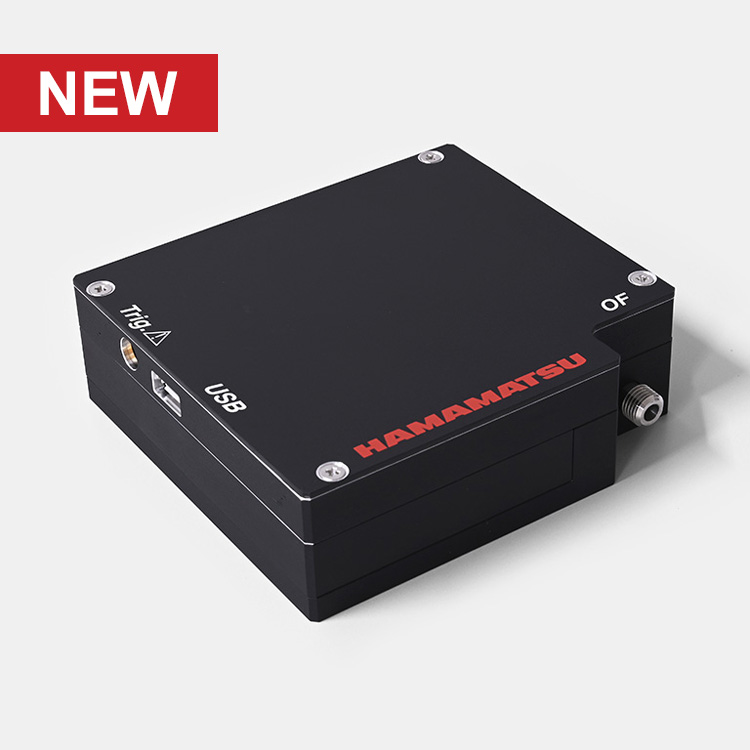

Mini-spectrometer C16449MA-01

The C16449MA-01 mini-spectrometer combines a compact, USB-powered design with a built-in high-sensitivity CMOS sensor, delivering wide spectral range, high resolution, and customizable performance. Ideal for precise, low-power spectroscopic measurements.

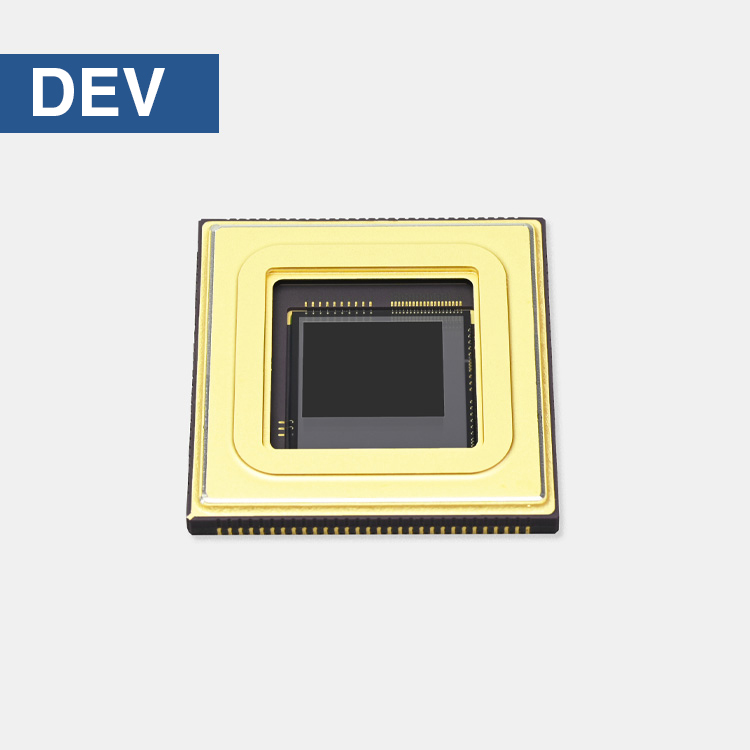

CMOS area image sensor S16101S-20

The S16101S-20 delivers exceptional UV performance with its back-illuminated APS CMOS architecture. Featuring an SXGA resolution of 1280 × 1024 pixels and a maximum frame rate of 146 fps, this sensor combines speed and sensitivity for demanding imaging tasks. For even faster operation, vertical pixel count can be adjusted to enable high-speed partial readout, giving you the control to optimize performance for your application.

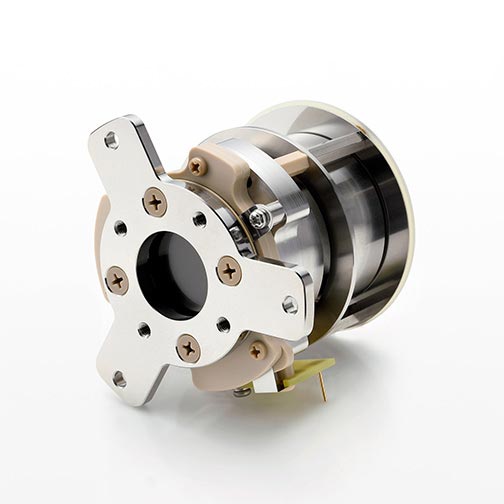

MIGHTION^® MCP Assembly F14845-11

The F14845-11, named MIGHTION^®, is an ion detector using a combination of an MCP (microchannel plate) and AD (avalanche diode). It features fast time response, long service life, and other performance characteristics unique to the hybrid combination.
